***SPECIAL ORDER*** Airlift T10, Shutter Exhaust Ventilation Fan 10", Temperature And Humidity Controller 69 PRO

***SPECIAL ORDER*** Airlift T10, Shutter Exhaust Ventilation Fan 10", Temperature And Humidity Controller 69 PRO

Regular price $349.95 AUD
Regular price Sale price $349.95 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • A high-airflow exhaust fan designed to ventilate out heat, moisture, odor, and dust from various spaces.
  • Dynamic temperature and humidity programming, with timers, grow cycles, scheduling, minimum speed.
  • Remotely connect via our WiFi app to access advance programs, alarms, notifications, and view climate data.
  • Features steel shutters, aluminum blades, and IP-44 rated to be highly resistant to liquid and dust.
  • Fan Size: 10” | Dimensions: 13.0 x 13.0 x 7.79 in. | Airflow: 631 CFM | Noise: 67 dBA | Bearings: Dual Ball

PRODUCT DESCRIPTION

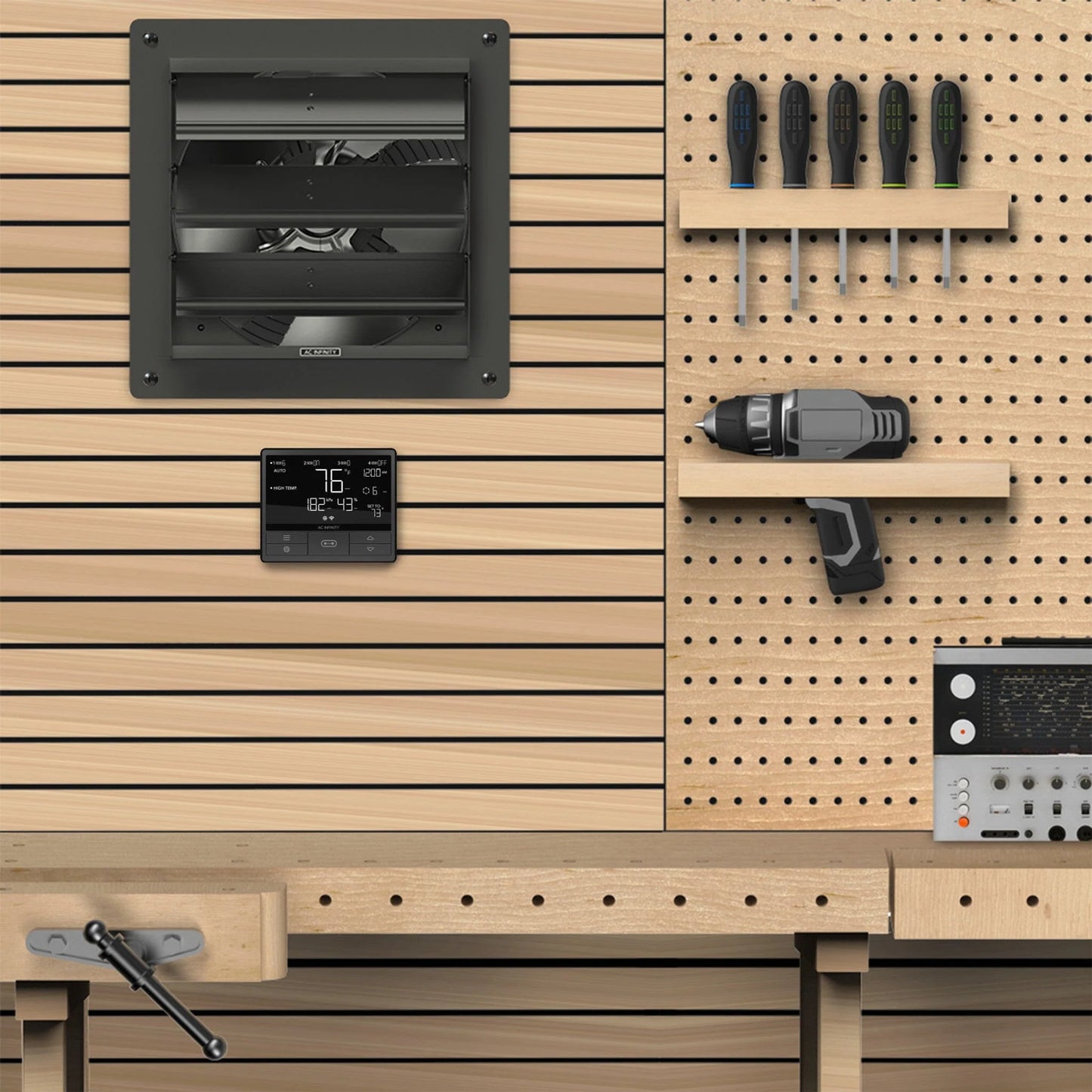

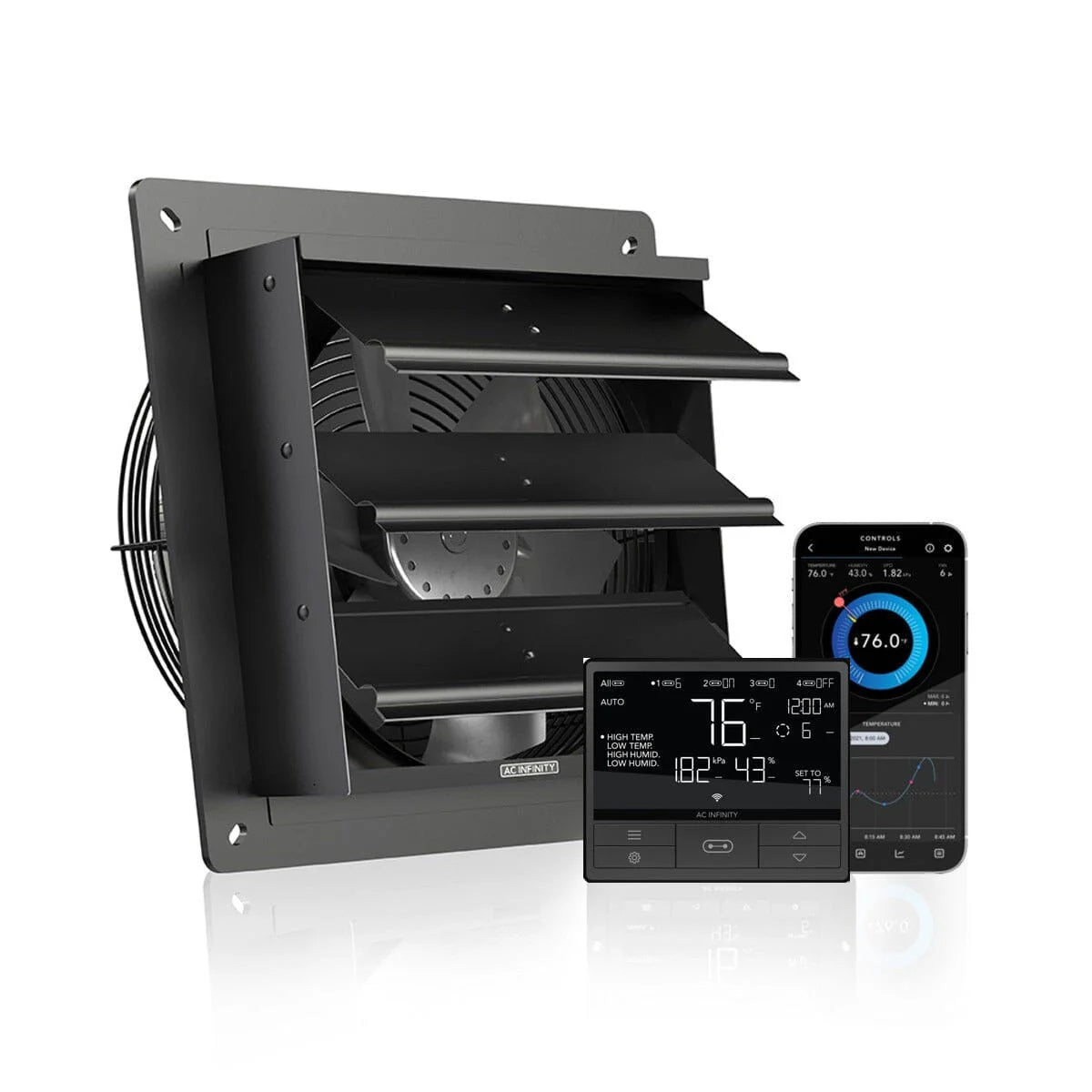

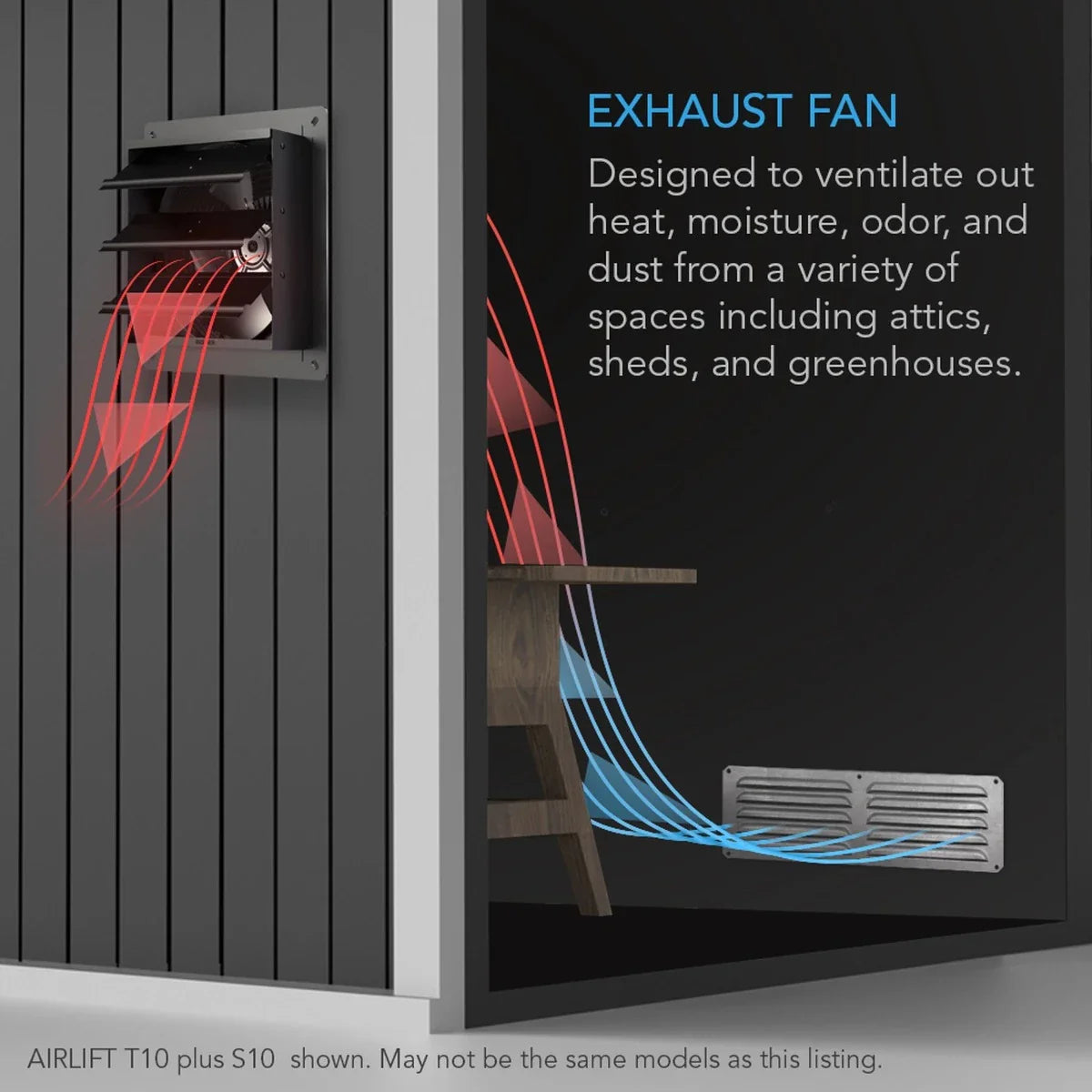

A high-airflow exhaust fan designed to cool and ventilate greenhouses, garages, attics, workshops, and sheds. The system can automatically eliminate heat, moisture, odor, and dust from enclosures, rooms, and buildings. Includes a smart controller with dynamic climate and time-based programming and can connect to multiple UIS devices. Innovative EC motor with PWM control maximizes airflow while reducing energy consumption and noise levels. Heavy-duty build features aluminum blades, steel wire guards, and steel shutters. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

SMART CONTROLLER

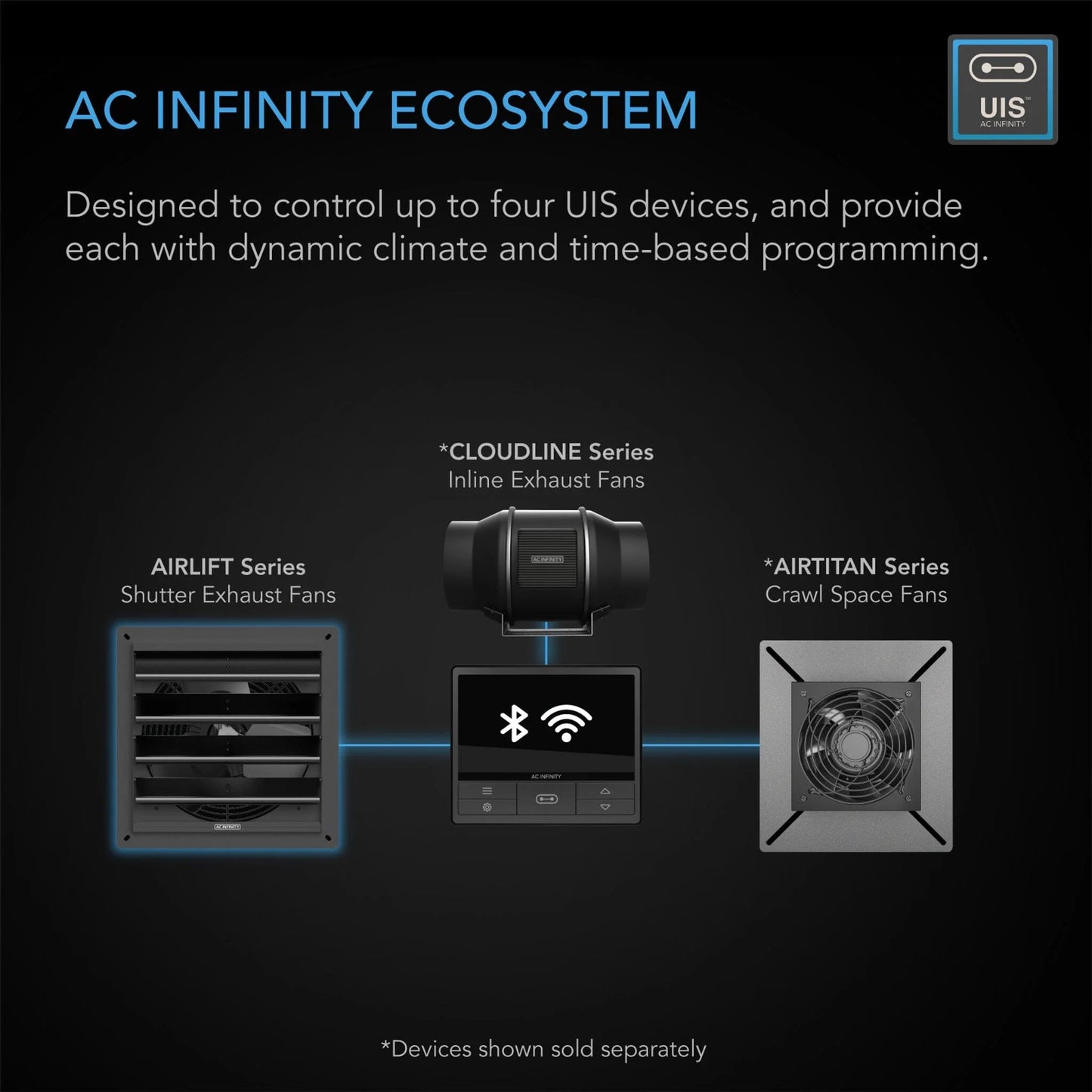

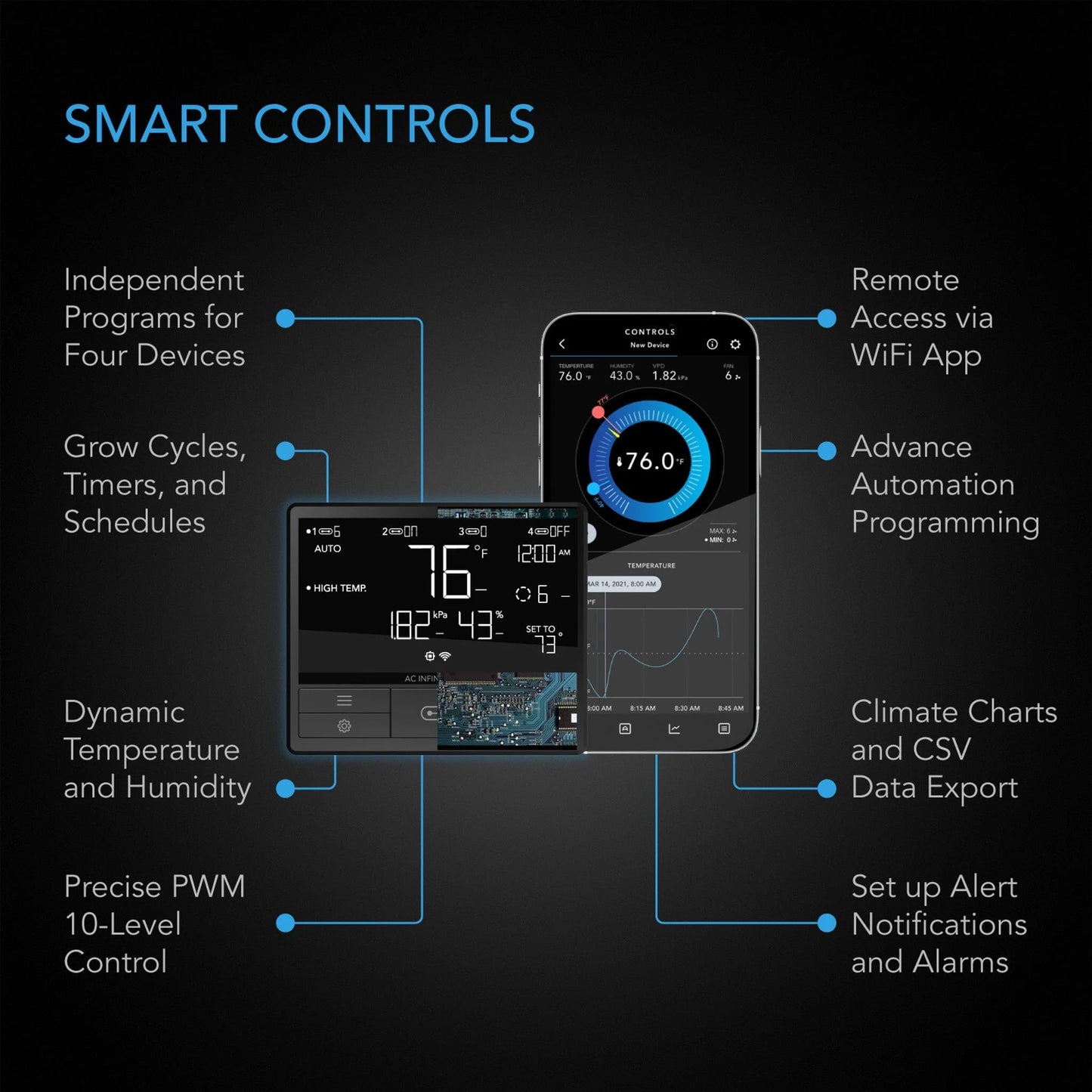

CONTROLLER 69 PRO features smart programming that not only has basic temperature, humidity, and VPD triggers but also allows you to set dynamic fan speeds that would respond based on their changes. Go even further by setting a minimum speed that the fan will run at constantly and would only increase when triggered. Timer, cycle, and schedule modes add custom on-demand activation for various uses. Securely connect to the AC Infinity app via WiFi to utilize automation capabilities from anywhere throughout the day. Access your fan remotely, unlock advance programs, set notifications, view historical climate charts, and export CSV data. This controller can mix and match connectivity between AIRLIFT Series shutter fans, CLOUDLINE Series inline fans, and AIRTITAN Series crawlspace fans.

HEAVY-DUTY PERFORMANCE

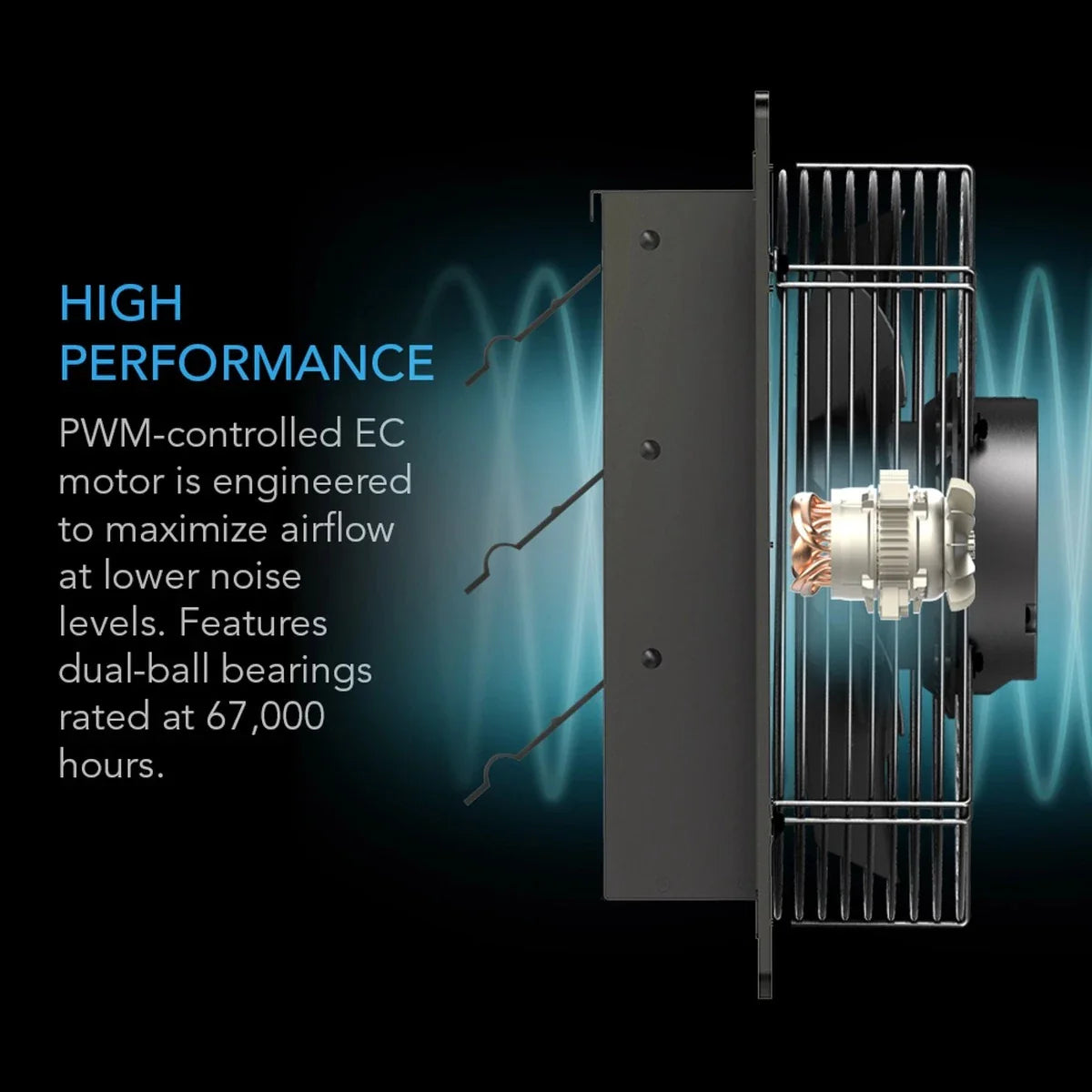

Features steel shutters that are weather and corrosion-resistant, and automatically close when not in use. The blades and impeller are constructed of lightweight aluminum, weight-balanced to reduce vibrations. Utilizing an innovative EC motor that is controlled electronically using PWM (Pulse Width Modulation), the fans can maximize airflow while reducing noise and power consumption. The fully enclosed motor is also permanently lubricated and houses dual-ball bearings that are rated at 67,000 hours. The unit is IP-44 rated to be highly resistant to dust and liquids and performs well even in harsh environments.



 Product Identification  Shutter Fan Airlift T10
   Manufacturer    AC Infinity Inc.
   Product Name    AIRLIFT T10
   Product Model    AC-ALT10
   UPC Code    819137020900

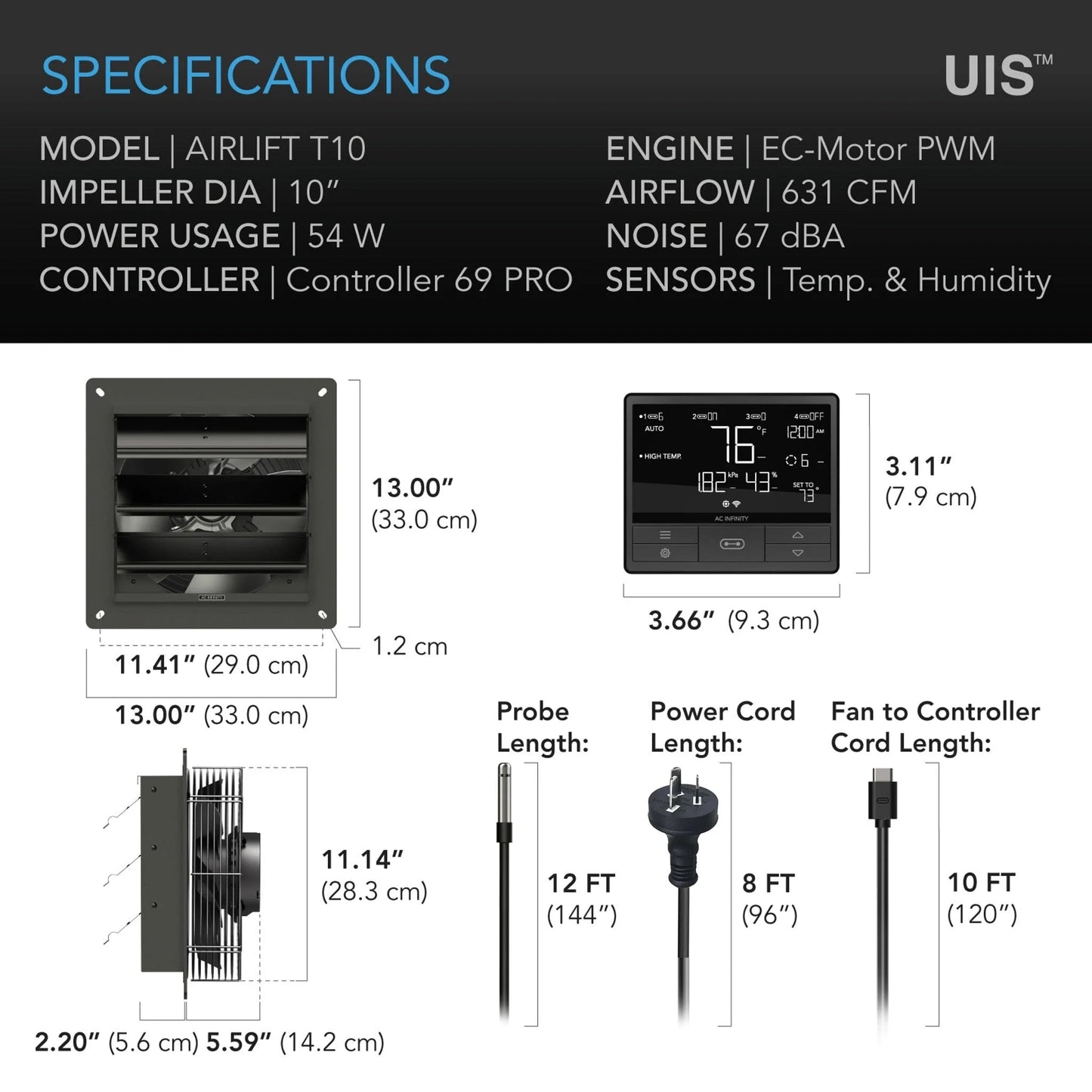

   Product and Mounting Dimensions - Fan Unit
   Total Dimensions    13.0 x 13.0 x 7.79 in (33.0 x 33.0 x 19.8 cm)
   Frontside Enclosure Dimensions    10.62 x 10.62 in. x 2.20 in. (27.0 x 27.0 cm x 5.6 cm)
   Required Mounting Hole    10.78 x 10.78 in (27.4 x 27.4 cm)
   Hole to Hole Distance    11.41 x 11.41 in (29.0 x 29.0 cm)
   Screw Hole Size    Ø 0.27 in (Ø 0.7 cm)
   Cord Length to Controller    120 in (10 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.66 x 3.11 x 0.98 in. (9.3 x 7.9 x 2.5 cm)
   Display Size    3.5 x 1.4 in. (9 x 3.5 cm)
   Cord Length to Plug    96 in (8 feet)
   Sensor Probe Length    144 in. (12 feet)
   Product Performance and Technical Specs
   Total Airflow    631 CFM
   Total Noise    67 dBA
   Static Pressure    96 Pa
   Operating Voltage    100-240V AC
   Power    54W
   Current    1.0A
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   CE Certification (Whole Product)
   CE Certification (Whole Product) PDF
   Product Manual
   Product Manual
   Installation Manual PDF

Comes with Australian Power cord

AC INFINITY OFFERS A 2 YEAR WARRANTY ON ALL PRODUCTS
